granulés: Drum Dryer Technical Parameters:

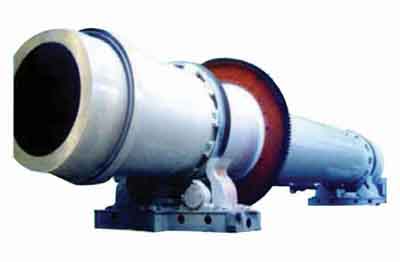

The rotary dryer is your best choice for high capacity applications involving high moisture, friable, free-flowing commodity products et by-products. A rotating drum et strategically positioned flights combine to lift et shower the product evenly through the air stream. Thermostatical controller discharges the temperatureof the air,assures the precise final moistures et great sensitivity to variegate the conditions of the product . Single-pass or three-pass configurations are available to match product characteristics. Heating options include
steam, gas, oil, thermal oil .
After the dank raw material is put into the dryer, it is turned over through the string-up rake which is inside of the cylinder et distributed uniform in the dryer, contacted fully with the countercurrent hot air. It aà granulés de boiselerates the heat et mass conducting of dry. During the period of drying, the raw material is effected by the stirring-up rake with gradient et the hot air.It can be moved et passed through the dry region to start valve et discharge the final product.
granulés: Drum Dryer Technical Parameters:
| Model | Diameter (mm) | Length(m) | Power(kw) | revolution(r/min) |
| HZG6 | 600 | 4,5,6,7,8 | 3-5.5 | 3-20 adjustment |
| HZG8 | 800 | 4,5,6,7,8,9,10 | 5.5-7.5 | |
| HZG10 | 1000 | 6,7,8,9,10,11,12 | 5.5-7.5 | |
| HZG12 | 1200 | 6,8,10,12,14,16 | 7.5-11 | |
| HZG15 | 1500 | 8,10,12,14,16,18 | 11-15 | |
| HZG18 | 1800 | 8,10,12,14,16,18,20 | 15-18.5 | |
| HZG22 | 2200 | 10,12,14,16,18,20,22,25 | 18.5-22 | |
| HZG24 | 2400 | 12,14,16,18,20,22,25 | 22-30 |
Item(m) |
capacity(t/h) | revolution(r/min) | motor power(kw) | install angle(degree) | Temp.of final |
| f1.0×5.0 | 0.5-1.2 | 0.6-6 | 4 | 3-5 | =1.5% |
| f1.2×6-10 | 1.5-3 | 0.6-6 | 5.5 | 3-5 | =1.5% |
| f1.5×12-18 | 3-5.5 | 0.6-6 | 15 | 3-5 | =1.5% |
| f1.8×12-18 | 5-6.5 | 0.6-6 | 18.5 | 3-5 | =1.5% |
| f2.2×12-22 | 7-12 | 0.6-6 | 22 | 3-5 | =1.5% |
| f2.4×15-20 | 9-15 | 0.6-6 | 30 | 3-5 | =1.5% |
| f3.0×25 | 16 | 0.6-6 | 55 | 3-5 | =1.5% |
