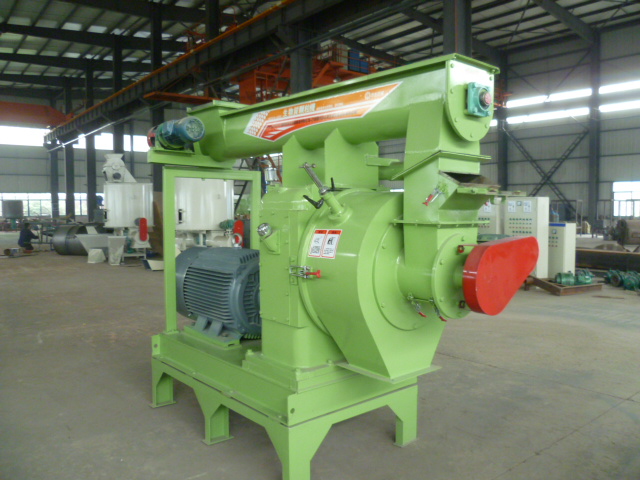

Pellet Mill With Ring Die
Feature:
Driven with heavy-duty gearbox construction can produce continuously in most adverse condition. The imported key elements are of high performance with long life and low maintenance cost. The key parts are made of alloy steel,which are very strong and malleable.The die is made of stainless steel. THis pellet machine is widely used in the granulation of wood, straw, other biomass sources. The capacity ranges from 200kgs to 3T per hour.
For wood sawdust and grazing
GC-MZLH-Serier wood pellet plant with ring die is the most important equipment during pelletizing process.Our wood pellet line includes feeder system, conditioner system, gear box system, ring die system and lubricate system. By the moveable screw of feeder, the dried material is transferred into the conditioner. The moisture content is the most important element to pelletize good quality pellet, so the conditioner is also very crucial to soften the raw material by water or steam
After softening the raw material, the suitable raw material is sent to the complete biomass pelleting plant chamber by imperative feeder, when the roller is moving in the wood pellet plant chamber, it makes the raw material inletting the holes in the ring die and form the pellet. After pelletizing, the length of the pellet can be cut according to the user's request. capacity ranges of this;wood pellet plant is from 200kgs to 3T per hour.Wood pellet plant t is widely used in the granulation of wood, straw, other biomass sources. Driven with heavy- duty gearbox construction can produce continuously in most adverse condition. The imported key elements are of high performance with long life and low maintenance cost. The key parts are made of alloy steel to be very strong and malleable. complete biomass pellet plant is made of stainless steel.
| Model | MainMotor Power(kw) | Capacity(t/h) | Feeding Motor Power(kw) | Conditioner Motor Power(kw) | Diameter of Die (mm) | Diameter of Pellet(mm) |
| GC-MZLH25 | 7.5*2 | 0.2-0.3 | 0.75+0.55 | 2.2 | 250 | 4-8 |
| GC-MZLH32 | 37 | 0.3-0.6 | 0.75+0.55 | 2.2 | 320 | 4-8 |
| GC-MZLH35 | 55 | 0.5-0.8 | 0.75+0.75 | 2.2 | 350 | 4-8 |
| GC-MZLH40 | 75 | 0.7-1.1 | 1.5+0.75 | 2.2 | 400 | 4-8 |
| GC-MZLH42 | 110 | 1.0-1.5 | 1.5+0.75 | 5.5 | 420 | 4-8 |
| GC-MZLH508 | 132/160 | 2.0-3.0 | 1.5+0.75 | 7.5 | 508 | 4-8 |
